XTEN-AV is a leading platform for professional AV design solutions, providing tools that help enthusiasts and integrators create the perfect home theater experience. One of the most critical factors in designing a home theater is correctly positioning the projector. The distance between the projector and the screen, known as the throw distance, determines image size, clarity, and overall viewing quality. Calculating the correct throw distance ensures that your projector performs optimally and delivers an immersive cinematic experience.

Introduction

A home theater projector can transform any room into a cinematic space, but achieving the ideal picture requires precise placement. Incorrect throw distance can result in images that are too small, stretched, or distorted. Understanding projector throw distance and using tools such as Projector Throw Distance Calculators helps ensure that your setup meets both room constraints and viewing expectations.

XTEN-AV offers advanced tools that allow users to simulate projector placement, calculate throw distance, and visualize image size before installation. This minimizes trial and error, saves time, and guarantees that your home theater system delivers professional-level performance.

1. What Is Throw Distance?

Throw distance is the measurement from the projector lens to the screen. It is directly related to the image size and the projector's throw ratio. The throw ratio is a specification provided by the manufacturer that describes how far the projector needs to be from the screen to achieve a particular image width.

For example, a projector with a throw ratio of 1.5:1 means that for every foot of screen width, the projector should be placed 1.5 feet away. Calculating throw distance is essential for proper installation, especially in rooms with space limitations or specific screen sizes.

2. Factors That Affect Throw Distance

Several factors influence throw distance calculations:

• Screen Size: Larger screens require longer throw distances. Knowing your desired screen width and height is the first step in calculating the correct placement.

• Projector Type: Short throw, ultra-short throw, and standard projectors have different throw ratios and placement requirements. Choosing the right projector type for your room is crucial.

• Room Size and Layout: Ceiling height, room length, and furniture placement affect where the projector can be installed. Ensuring a clear path between the projector and screen is necessary to avoid shadows and obstructions.

• Lens Shift and Zoom Capabilities: Some projectors have lens shift or zoom features that allow slight adjustments to the throw distance without moving the projector. These features provide flexibility but must be considered in initial calculations.

3. Using Projector Throw Distance Calculators

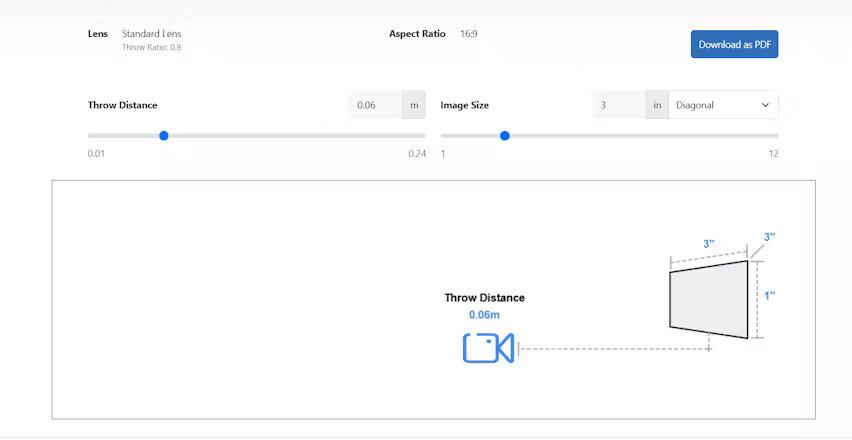

Projector Throw Distance Calculators are invaluable tools for determining the ideal placement of your home theater projector. These calculators require inputs such as screen width, desired image size, and projector throw ratio.

Once the data is entered, the calculator provides the precise distance the projector should be mounted from the screen. XTEN-AV offers advanced simulation tools that integrate these calculations with room dimensions, allowing users to visualize how the image will appear in the space. This ensures proper alignment and optimal viewing angles.

4. Step-by-Step Throw Distance Calculation

Here is a simple approach to calculating projector throw distance:

1. Measure the Screen Width: Determine the width of your screen in feet or inches.

2. Check the Projector Throw Ratio: Consult the projector’s specifications to find its throw ratio.

3. Apply the Formula: Multiply the screen width by the throw ratio. For example, if the screen is 100 inches wide and the throw ratio is 1.5:1, the throw distance is 150 inches or 12.5 feet.

4. Adjust for Zoom or Lens Shift: If your projector allows zoom or lens shift, minor adjustments can be made to fine-tune the image placement.

5. Simulate in Software: Use XTEN-AV or other design software to visualize the image in your room and ensure that the calculated throw distance fits within the available space.

5. Short Throw and Ultra-Short Throw Considerations

Short throw and ultra-short throw projectors are designed for smaller rooms and can project large images from a short distance. While this provides flexibility in placement, calculating throw distance remains essential.

These projectors have specialized throw ratios that differ significantly from standard models. Using a Projector Throw Distance Calculator ensures that even with limited space, the projected image fills the screen correctly without distortion.

6. Ceiling and Wall Mounting

Projector placement also depends on whether you mount it on the ceiling, wall, or tabletop. Ceiling-mounted projectors typically require adjustments for tilt and keystone correction. Proper throw distance ensures that the image is sharp and properly aligned without excessive keystone correction, which can degrade image quality.

XTEN-AV allows designers to simulate ceiling or wall-mounted installations, factoring in throw distance, screen height, and projector angle for optimal results.

7. Avoiding Common Mistakes

Common mistakes when calculating throw distance include:

• Ignoring projector specifications: Each projector model has unique throw ratios that must be followed.

• Not accounting for room layout: Furniture, lighting, and obstacles can impact projector placement.

• Excessive keystone correction: Relying too heavily on keystone adjustments to fit the image can reduce clarity and distort the picture.

Using Projector Throw Distance Calculators and professional design tools helps avoid these mistakes and ensures a perfect home theater setup.

Conclusion

Calculating the correct throw distance is critical for achieving the best image quality in a home theater. By understanding projector specifications, screen size, room layout, and using Projector Throw Distance Calculators, users can position their projectors accurately and enjoy a cinematic experience at home.

XTEN-AV provides advanced AV design tools that simulate projector placement, calculate throw distance, and visualize the image in the room before installation. Proper planning and calculation ensure that your home theater projector delivers sharp, vibrant, and immersive visuals, creating a professional-level viewing experience in any space.

Accurate throw distance is the foundation of a great home theater, and with the right tools and knowledge, you can enjoy perfect image size, clarity, and projection for years to come.
